Liquid Cylinder Pallets

Sur-Loc Pallets and Cages

liquid cylinder pallet

The Liquid pallet allows (4) of the LS160/GP45/GP55 liquid dewars to be connected to a common header via the Gas port on the liquid dewar. This allows large volume end users to supply to their downstream application via a regulator attached to one or both of the exit CGA’s on the common header.

THE LIQUID CYLINDER PALLET IS A GREAT MICROBULK ALTERNATIVE

This is an excellent alternative for suppliers to both utilize dormant dewar assets and supply product to their end users who may not be viable candidates for a microbulk setup with Orca liquid deliveries to their site.

The units can easily be broken down back at the fill plant and replaced with full dewars for the next swap at the client, assuring a continuous supply of gas without the need to make a large investment in a microbulk installation.

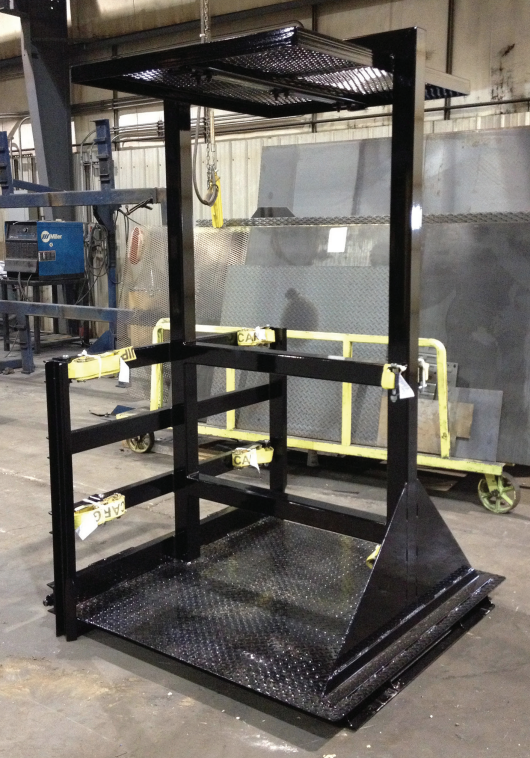

Screen Shot 2022-03-31 at 2.42.35 PM

standard features and available options

  • 4-Way forklift accessible from the bottom.
  • Built on a standard Weldcoa Pallet Base with the patented Sur-Loc™ Locking Mechanism
  • The pallet base is structurally sound
  • A grease reservoir that lubricates all of the moving parts every time the lock is actuated
  • Entire pallet is professionally powder-coated for added safety and to also protect from wear, corrosion, impact, and weather
  • Complies with Federal DOT regulations
  • 100% Made in the USA

REQUEST A QUOTE

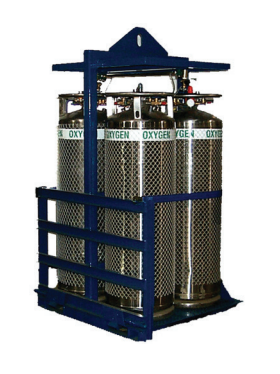

Screen Shot 2022-03-31 at 2.42.49 PM

Liquid cylinder pallet

IPLQL4-BTNS

Sur Loc 4 Liquid Cylinder 160-180 Liter, Textured Non-Skid Paint, Black

Liquid cylinder pallet manifolds

PM04B-FDBPB540

Liquid Manifold, 4 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI,CGA 540, with Standard Pressure Valves

PM04B-FDBPB580

Liquid Manifold, 4 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI,CGA 580, with Standard Pressure Valves

PM04B-FNBPB540

Liquid Manifold, 4 Cylinder Brass Header, Flexible Single Braided Non-Sintered Teflon Lined Leads MAWP 3,000 PSI,CGA 540, with Standard Pressure Valves

PM04B-FNBPB580

Liquid Manifold, 4 Cylinder Brass Header, Flexible Single Braided Non-Sintered Teflon Lined Leads MAWP 3,000 PSI,CGA 580, with Standard Pressure Valves

MANY manifold options





LW06B-CPBR-B580 Solidworks Drawing



See More Manifold Options Available

phone-callHave a special application?

For any questions on what is offered or if you have a specialty application, please feel free to contact us at (630) 806-2000 or email us at sales@weldcoa.com.
