LowPro Manifold Product Page

manifold and lead options for

weldcoa's lowpro style gas packs

Weldcoa proudly designs, manufacturers, assembles, cleans and test a wide variety of manifolds and leads (pigtails) in-house. Many gas distributors count on us to provide reliable product to replace their aging equipment and have made Weldcoa their preferred vendor due to the unwavering quality of our equipment.

"Whether our leads are installed on a new manifold or ordered as replacement parts, be ensured that you received the highest quality product in the market." Hector Villarreal, President of Weldcoa

6 and 12 cylinder manifold header options available in Brass, Stainless Steel and Monel 400
Manifolds are available as a stand-alone item or with either permanent or replaceable rigid or flexible leads.
Additional options such as replaceable leads are also available
Every manifold assembly, including the leads, are 100% hydrostatically pressure tested to 1.5 times the MAWP and then 100% nitrogen leak tested.

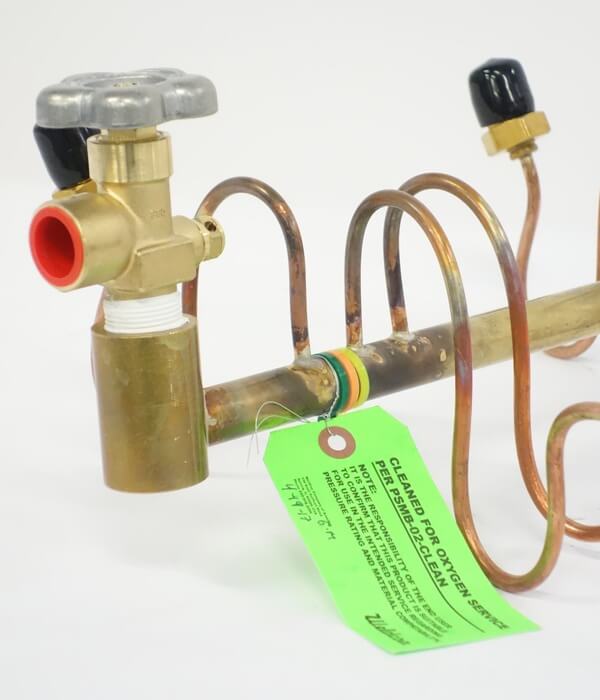

Following the pressure test, each assembly is 100% oxygen cleaned, dried, bagged to the highest safety standards including CGA's 4.1 requirements.
All Weldcoa's flexible lead assemblies meet CGA E-9 Section 4.1.6 Effusion Requirements as well
Minimum Burst is Four Times Maximum Allowable Working Pressure
All of Weldcoa's non-metallic lines flexible leads are manufactured using a true PTFE post-sintered innercore; providing the lowest possible effusion rate, the highest flex life and the widest temperature range of any fluoropolymer available.
Weldcoa post-sintered flexible leads have passed several difficult levels of testing either by an independent lab or internally in each stage of production.
Adiabatic Testing/Surge Testing has been completed at NASA White Sands Test facility by Jacobs Technology.
All Manifolds and Leads are Made in the USA

FLEXIBLE LEAD REPLACEMENT SUGGESTIONS

Typically a lead is the last item to be specified in a system. In doing so the lead usually is not placed on a maintenance program and subjected to over use.

Regular replacement of flexible lead assemblies based on application and use will lead to less down time and improved safety
These guidelines assume the lead is in good working order and does not have any of the conditions discussed prior
When in doubt replace the lead assembly to ensure maximum safety

Weldcoa recommends the following:

Flexible Leads used on Gas Packs should be replaced every 10,000 Fill Cycles or every 10 years, whichever occurs first.

Please Note: Gas Pack Leads (Double Braided/Post Sintered/3600 PSI MAWP) should be visually inspected before each fill to detect any kinks, frays in the weave or discoloration of the leads. (Gas Packs used in acidic or reactive atmospheres may suffer discoloration.) If any leads are found to have kinks, frays or discoloration the lead needs to be replaced immediately. (Isolate the pack until the damaged lead has been replaced.) In addition, the leads should be leak checked during every fill cycle.

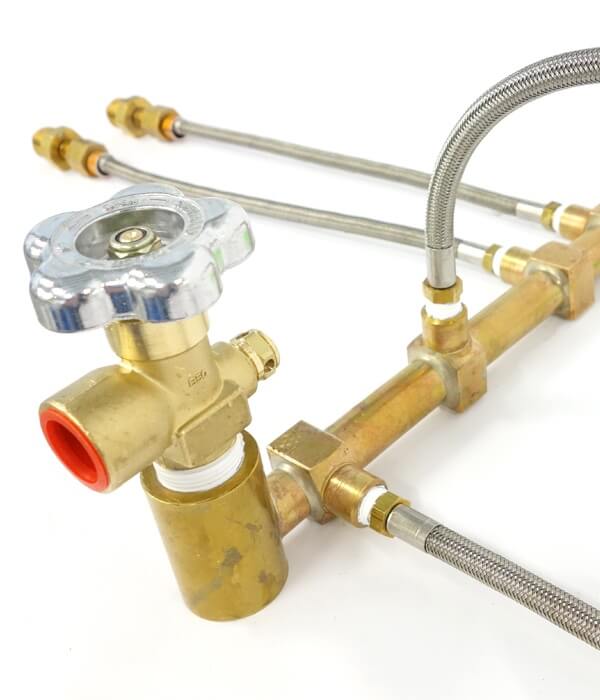

Brass Manifold with Flex Leads 460x300pixels

Flexible Leads used in a Cylinder Fill Facility should be replaced every 10,000 Fill Cycles or every 5 years, whichever occurs first.

Please Note: Fill System Leads (Double Braided/Post Sintered/3600 PSI MAWP) should be visually inspected every morning prior to the first fill of the day to detect any kinks, frays in the stainless-steel weave or discoloration of the leads. If any leads are found to have kinks, frays or discoloration the lead needs to be replaced immediately. (You should never use a damaged lead during the fill process.) In addition, the leads should be leak checked during every fill cycle.

Fixed Fill Rack2_Slider 1920x800

LEAD MAINTENANCE SUGGESTIONS

Weldcoa offers some common practice maintenance suggestions for your lead and hoses. Be Safe and Proactive. Click Here for Details

want to reduce your product loss? learn about the benefits of PTfe post-sintered innercore

Polytetrafluoroethylene (PTFE) is a synthetic fluoropolymer of tetrafluoroethylene. The best known brand name of the PTFE-based formula is Teflon® by Chemours. Chemours is a spin-off of DuPont Co., which discovered the compound in 1938.

The post-sintered process re-bakes the PTFE at a controlled time and temperature, increasing the wall thickness and tightening the molecular bond, which dramatically reduces effusion rate. By making these voids as small as possible it closes the path a gas will follow while under pressure making the PTFE more "dense".

Post-Sintered PTFE provides the lowest effusion rate possible while maintaining the highest flexibility and most robust inner core.

In the gas industry: the higher the effusion rate, the higher the product ($$$$) loss for flexible lead (hose/pigtail) material...Post-Sintered PTFE is your best option.

Economically priced
Lowest effusion rate providing the lowest amount of lost gas in service
Wildest temperature range
Highest flexibility
Longest service life
Meets and exceeds CGA E-9 sec 5.7

Weldcoa is now post-sintering PTFE inner core tubing for flexible leads and the focus is strictly on the high pressure gas market. Made to Weldcoa’s strict quality specifications. We took control over and made safety top priority.

No more quality concerns
No more supply issues
No more headaches
No more delays

popular 6 cylinder manifold options for lowpro style gas packs

lm06b-cpbp-b540

LowPro Manifold, 6 Cylinder Brass Header, Rigid Copper Leads, CGA 540, with Standard Valve.

lm06b-cpbp-b580

LowPro Manifold, 6 Cylinder Brass Header, Rigid Copper Leads, CGA 580, with Standard Valve.

lm06b-FDbp-b540

LowPro Manifold, 6 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 540, with Standard Valve.

lm06b-FDbp-b580

LowPro Manifold, 6 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 580, with Standard Valve.

lm06b-ssbp-b350

LowPro Manifold, 6 Cylinder Brass Header, Rigid Stainless Steel Leads, CGA 350, with Standard Valve.

lm06b-ssbp-b580

LowPro Manifold, 6 Cylinder Brass Header, Rigid Stainless Steel Leads, CGA 580, with Standard Valve.

popular 12 cylinder manifold options for lowpro style gas packs

lm12b-cpbp-b540

LowPro Manifold, 12 Cylinder Brass Header, Rigid Copper Leads, CGA 540, with Standard Valve.

lm12b-cpbp-b580

LowPro Manifold, 12 Cylinder Brass Header, Rigid Copper Leads, CGA 580, with Standard Valve.

lm12b-FDbp-b540

LowPro Manifold, 12 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 540, with Standard Valve.

lm12b-FDbp-b580

LowPro Manifold, 12 Cylinder Brass Header, Flexible Double Braided Post-Sintered Teflon Lined Leads MAWP 3,600 PSI, CGA 580, with Standard Valve.

lm12b-ssbp-b350

LowPro Manifold, 12 Cylinder Brass Header, Rigid Stainless Steel Leads, CGA 350, with Standard Valve.

lm12b-ssbp-b580

LowPro Manifold, 12 Cylinder Brass Header, Rigid Stainless Steel Leads, CGA 580, with Standard Valve.

NEED A REPLACEMENT LEAD (PIGTAIL)

FBAXX-15-BXXX

15” Lead for a 6 or 12 Cylinder Manifold, MAWP 3,600 PSI, 1/4” Post-Sintered Teflon Inner-core, Double Braided Stainless Steel, Brass 1/4” MNPT, Brass 1/4” FNPT
